Victron Multi Omvormer Acculader 48V 500VA 6A Omvormer specificaties
Transfer Switch 16A
Input voltage range 38– 66V
Output Output voltage: 230VAC ± 2% Frequency: 50Hz ± 0,1%. Kan aangepast worden tot 60Hz and to 240V
Cont. output power at 25°C (3) 500VA
Cont. output power at 25°C 430W
Cont. output power at 40°C 400W
Cont. output power at 65°C 300W
Peak power 900W
Maximum efficiency 92%
Zero-load power 7,3W
Zero-load power in search mode 2,8W



Victron Multi Omvormer Acculader 48V 500VA 6A Acculader specificaties
AC Input Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz. Power factor: 1
Charge voltage ‘absorption’ 57,6V
Charge voltage ‘float’ 55,2V
Storage mode  52,8V
Charge current house battery (4) 6A
Charge current starter battery 1 A
Battery temperature sensor Yes



Victron Multi Omvormer Acculader 48V 500VA 6A Algemene specificaties
Programmable relay (5) Yes
Protection (2) a – g
Common Characteristics
Operating temp. range: -40 to +65°C (fan assisted cooling) Humidity (non-condensing): max 95%

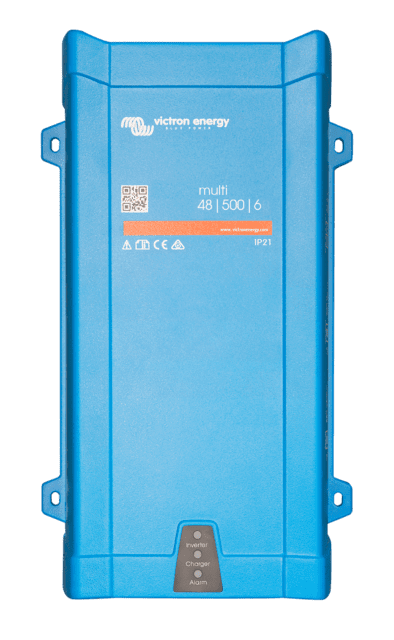

Victron Multi Omvormer Acculader 48V 500VA 6A Behuizing specificaties

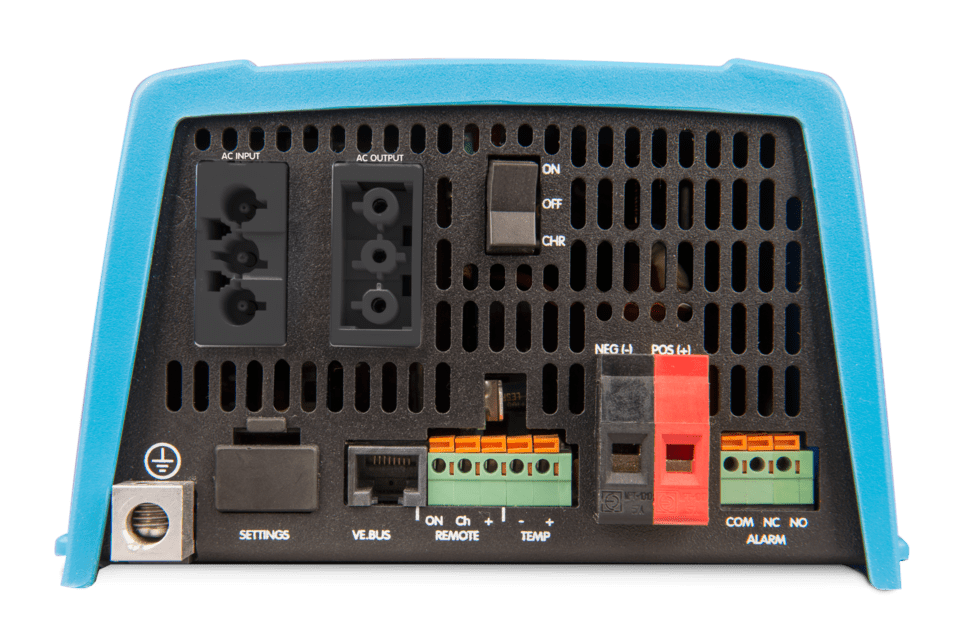

Common Characteristics Material & Colour: Steel/ABS (blue RAL 5012) Protection category: IP 21
Battery-connection 10mm2
230V AC-connection G-ST18i connector
Gewicht 4,4 kilo
Afmetingen 311x182x100mm



Normen
Safety EN 60335-1, EN 60335-2-29, EN 62109-1
Emission / Immunity EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3



2) Protection a. Output short circuit b. Overload c. Battery voltage too high d. Battery voltage too low e. Temperature too high f.  230VAC on inverter output g. Input voltage ripple too high
3) Non-linear load, crest factor 3:1
4) At 25°C ambient
5) Programmable relay which can be set for: General alarm, DC under voltage or generator start/stop signal function, AC rating: 230V/4A, DC rating: 4A up to 35VDC, 1A up to 60VDC
